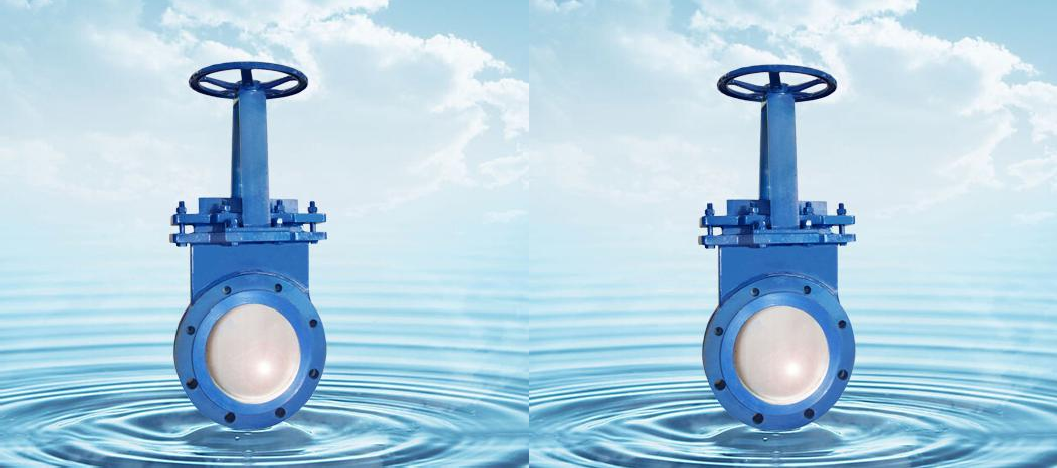

Manual Knife Gate Valves Product model：KZ73X-2.5/6/10/16
The manual knife gate valve is mainly applied to Pipeline which can make switching time unrestricted or installed in spare valve which can make overhaul easily. Its applicable medium includes bauxite slurry, asphalt, catalyst residue, silt, concrete mud, mortar, pulp, cement, paraffin, slag, sawdust, ash, clay, pulverized coal, etc. The manual knife gate valve has some advantages of simple structure, light weight, flexible starting, easy installation and replacement, and lower maintenance cost. The upside of the valve body is a Hand-wheel device which significantly reduces the total weight of valve body. When the handwheel is turned clockwise, the valve is turned on, otherwise it is turned off.
The materials of all parts of the valve are:
1. Valve body: the valve body adopts wafer type steel casting, and the drift diameter is lined with SS304 stainless steel;
2. Valve plate material: SS304 stainless steel;
3. Material of valve seat sealing surface: the valve seal is hard seal plus soft seal, and the soft seal is silica gel;
4. Upper sealing packing: PTFE packing;
5. Valve stem material: 2Cr13;
6. Master wire material: nodular cast iron;
7. Hand wheel material: ductile iron;
8. Packing gland and pressing plate: steel castings;

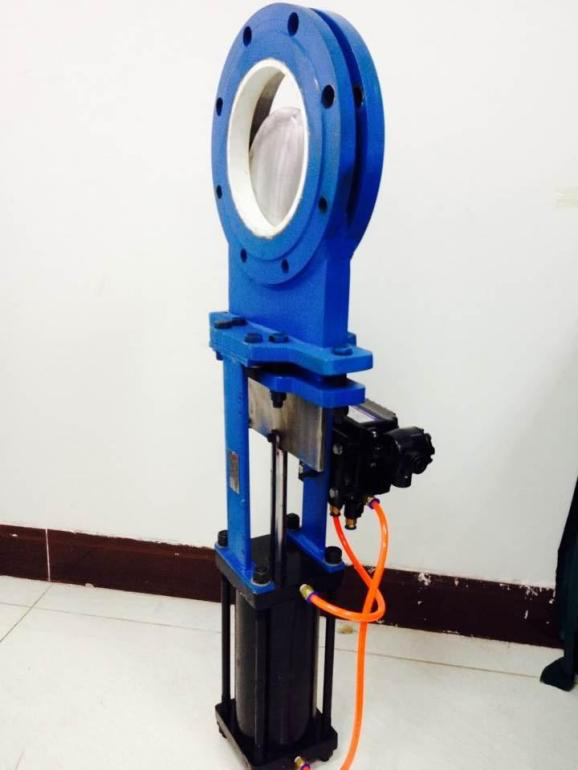

Pneumatic Knife Gate Valves Product model: KZ673X-2.5/6/10/16
The DZ-S pneumatic knife gate valve is mainly applied to the required rapid two way switch control pipeline, which needs 3-10 seconds of opening and closing time. Working Air pressure of DZ-S should be above 0.6Mpa, otherwise the valve plate will not move or move slowly. This valve’s suitable medium is the same as manual knife gate valve’s. The upper body of the valve is a pneumatic, therefore, installation position should be reserved in advance, valve should be installed vertically and the maximum tilt angle can’t exceed 45 degrees. Besides, the valve must be installed in tilt and make a support for the cylinder when valve size comes large.
The actuator of the pneumatic knife gate valve is, two types for selection, a triplet connected by cylinder+a three-position four-way valve or a triplet connected by cylinder+a solenoid valve. There is a distinction for selecting a solenoid valve(DC 24V or AC 220V).
The materials of all parts of the valve are:
1. Valve body: the valve body adopts wafer type steel casting, and the drift diameter is lined with SS304 stainless steel;
2. Valve plate material: SS304 stainless steel;
3. Material of valve seat sealing surface: the valve seal is hard seal plus soft seal, and the soft seal is silica gel;
4. Upper sealing packing: PTFE packing;
5. Steel cylinder material: steel barrel, upper and lower covers Q235, piston and shaft 45# steel;
6. Packing gland and pressing plate: steel castings;
Analog Control Knife Gate Valves Product model: KZ673X-2.5/6/10/16
The analog control knife gate valve is a kind of valve control mode that can realize remote control. The biggest characteristic of this valve is that it can be easily controlled in the centralized control room. The valve is equipped with a locator and an air pressure reducing valve on the basis of the original pneumatic valve. The locator needs to input a 4-20mA Input signal on EP port and 4～20mA output signal on PTM port(Feedback signal), then computer in central control room will know the status of the valve which will lighten the labor and the Inspector needn’t to observe opening status of the valve on the spot. Generally, The current of the feedback signal has been set when leaving factory, and the error will not exceed 0.5mA.
The materials of all parts of the valve are:
1. Valve body: the valve body adopts wafer type steel casting, and the drift diameter is lined with SS304 stainless steel;
2. Valve plate material: SS304 stainless steel;
3. Material of valve seat sealing surface: the valve seal is hard seal plus soft seal, and the soft seal is silica gel;
4. Upper sealing packing: PTFE packing;
5. Steel cylinder material: steel barrel, upper and lower covers Q235, piston and shaft 45# steel;
6. Packing gland and pressing plate: steel castings;

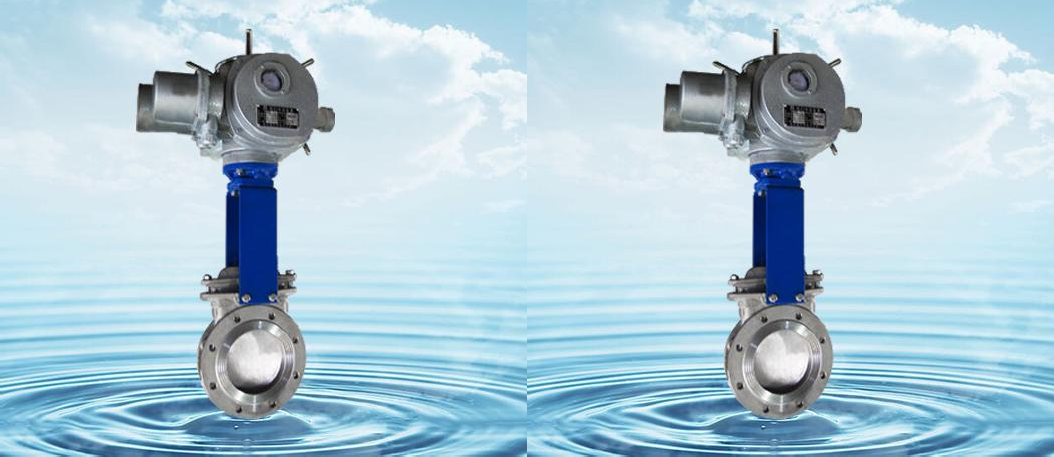

Electric Knife Gate Valves Product model: KZ973X-2.5/6/10/16
The electric knife gate valve is also a kind of remote control manual switch valve, with an electric actuator on its top support, installed a 380V distribution box with control button near the pipeline of the valve, which has a wire between the electric actuator and distribution box. The opening and closing of the electric valve is in the average speed, and the valve is mainly installed in a complex working condition, the place where people can’t touch easily. However, the moisture proof of the electric actuator, protection of the wire and leakage of electricity should be pay more attention.
The materials of all parts of the valve are:
1. Valve body: the valve body adopts wafer type steel casting, and the drift diameter is lined with SS304 stainless steel;
2. Valve plate material: SS304 stainless steel;
3. Material of valve seat sealing surface: the valve seal is hard seal plus soft seal, and the soft seal is silica gel;
4. Upper sealing packing: PTFE packing;
5. Electric actuator: Lanling electric actuator;
6. Packing gland and pressing plate: steel castings;
7. Valve stem material: 2Cr13;
8. Mother wire material: brass;

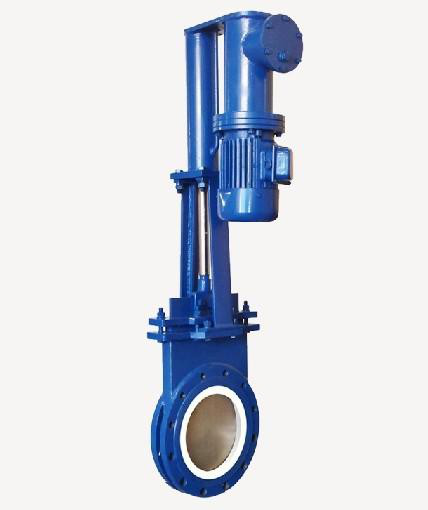

Electric Hydraulic Knife Gate Valves Product model: KZ273X-2.5/6/10/16
The electric hydraulic knife gate valve is a kind of valve form, adopted motor driven hydraulic oil that acts on rod and moves up and down movement. Its main features are: The valve plate can run steady when the valve is opened or closed; Moreover, the power of hydraulic pressure is great, then this hydraulic valve is extremely effective when it is used in installing under great resistance. A distribution box is needed to control the hydraulic motor of the hydraulic head, when the installation happens. Besides, two travel switches needs to install on valve support up and down and a touch rod should be installed on valve plate. When the valve is opened(press the start button on distribution box), the valve plate goes up, and the valve will stop automatically when the rod touches travel switch of the top; When the valve is shut down(press the stop button on distribution box), the valve plate will move down, and the valve will stop automatically when the rod touches travel switch of the bottom. The voltage of the hydraulic motor is 380V.
The materials of all parts of the valve are:
1. Valve body: the valve body adopts wafer type steel casting, and the drift diameter is lined with SS304 stainless steel;
2. Valve plate material: SS304 stainless steel;
3. Material of valve seat sealing surface: the valve seal is hard seal plus soft seal, and the soft seal is silica gel;
4. Upper sealing packing: PTFE packing;
5. Packing gland and pressing plate: steel castings;
6. Electro hydraulic drive: the latest integrated oil pump valve block is adopted, and the quick cut-off self-locking function is added. The switch is stable, the pressure can be maintained at any position of the stroke, and the arbitrary adjustment and control of the valve can be realized stably and reliably;
7. Remote local conversion control box: it adopts low-voltage control mode, which can realize the conversion of centralized control and local control. It has three functions: on, off and stop. Pressing stop can stop the valve plate at any position, and can realize manual adjustment. The valve is equipped with limit switch, which can realize the automatic power-off function when the switch is in place. The electrical appliances are not lower than Schneider's equivalent products;
8. Motor: 380V AC motor;
