1.Overview

Slurry pump is the main equipment for transporting slurry in alumina process. The normal operation of slurry pump is the reliable guarantee for the stable increase of alumina production. At present, the slurry pumps produced in China are all general-purpose products. When they are used in alumina process, the adaptability of the products will be limited to different degrees. For example: the service life of pump flow parts, the sealing effect of pump shaft seal and the general standardization degree of accessories. Our company has comprehensively and systematically analyzed the application effect of slurry pump in alumina process at home and abroad, adopted the strategy of developing strengths and avoiding weaknesses, and jointly designed and manufactured YZS and YZD slurry pumps for alumina process series according to different slurry characteristics of alumina process, and won five national invention patents, It fills the blank of slurry pump in alumina process in China.

2.Main Features

The impeller, volute and guard plate of YZS and YZD alumina slurry pump series adopt the solid-liquid two-phase flow hydraulic model developed by domestic famous universities according to the characteristics of alumina slurry. This design has high efficiency, cavitation resistance, no local wear phenomenon, and its wear resistance is higher than that of slurry pump used in alumina industry.

The flow passage parts of the pump have high interchangeability; Although the flow passage parts of YZS and YZD type alumina process series slurry pumps are different from those used in alumina industry at present, they can be interchanged, fully meeting the needs of users for the flow passage parts and spare parts of YZS and YZD type alumina process series slurry pumps.

The shaft seal of YZS and YZD type alumina process series slurry pump is a combined structure of "power seal and mechanical seal". This combined structure design is the first patented technology in China, which can keep the long-term slurry leakage free effect of the pump shaft seal, and the service life of the seal is several to dozens of times that of the mechanical seal and packing seal.

The flow passage parts of YZS and YZD alumina slurry pumps are normally made of kmtbcra28 high chromium alloy wear-resistant material with Rockwell hardness up to 62.

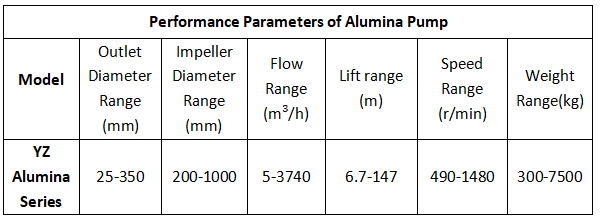

3.Parameters
